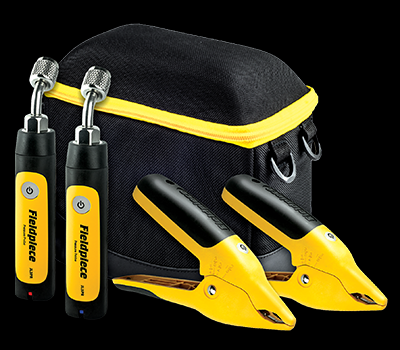

FieldpieceJL3KR4 - Refrigerant Charge Test Kit
Superior distance with +300 metre connectivity!
That means you can see what your Air Handler or Evaporator is doing while your at the condensing unit .... Perfect for tuning your TX Valve ....
Use it for checking Superheat, Sub-Cooling, System pressures & pipe temps.
This kit consists of
- 2 x Pressure Probes for Discharge & Suction Pressure
- 2 x Pipe clamps for liquid line subcooling & suction line Superheat
- Contained in a quick access padded case.
- All measurements can be sent up to +300 metres away directly to your mobile device with the Job Link™ app.
Each tool is designed for agility and speed. The pressure probes fit into tight spaces. The pipe clamps use the new Rapid Rail™ sensor design delivering accuracy, speed, and agility, even on the most awkward pipe configurations.
Logging is now activated..
Simply connect your probe to the Job Link App & follow the update procedure. Log multiple parameters at one time to get the right analysis of your system. To obtain a Superheat or Sub-Cool Log, add the refrigerant in the field provided after downloading your data from the JL3PR pressure Probe..... the Saturation Temperatures will show for your readings. Meld the table cells from your JL3PC Pipe Clamp Probe Log... either Suction or Liquid line & your superheat or subcooling values will be presented.
Use the JL3PC to test your delta T. across the filter drier.... Temperature differences over 1.0 degrees C need to be monitored for loss of system efficiency.
1 - Year from Date of Purchase
Excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Case etc
WHAT'S INCLUDED
- 2 x JL3PC Job Link Premium Pipe Clamp Probes
- 2 x JL3PR Job Link Pressure Probes
- ANC18 Protective Case
- 2 x AAA Batteries Per Probe (8 Total)
SPECIFICATIONS
Wireless Range: +300 metres
Wireless Frequency: 2.4 GHz
Battery: 2 x AAA (included)
Battery Life: 150 hrs typical alkaline
Auto Power Off (APO): 2 hrs (can be disabled)
Minimum Device Requirement: BLE 4.0 devices running iOS® 7.0 or AndroidTM 5.0Job Link™ Pressure Probe - JL3PR
Connector Type: 45° Standard 1/4” NPT female flare
Best Accuracy: ±1 psig (±7 kPa)
Measurement Range: 0 to 580 psig (0 to 4000 kPa)
Maximum Overload: 800 psig (5500 kPa)
Water Resistant: Designed to IP55Job Link™ Premium Pipe Clamp Probe - JL3PC
Pipe Compatibility: Electrically conductive 1/4” to 1 3/8” (6.4mm to 34.9mm) dia.
Accuracy: ±1°F (±0.6°C)
Measurement Range: -50°F to 257°F (-46°C to 125°C)
Stabilization Time: 3 seconds typical
Measurement Feedback: Beeper and LED
Water Resistant: Designed to IP55
Patent: Pending
SKU JL3KR4 Brand Fieldpiece Shipping Weight 2.5000kg Shipping Width 0.300m Shipping Height 0.200m Shipping Length 0.300m Shipping Cubic 0.018000000m3 Unit Of Measure ea Assembled Length 0.300m Assembled Height 0.200m Assembled Width 0.300m
