FieldpieceMR45INT Refrigerant Recovery Unit designed for Air Conditioning & Refrigeration

MR45INT Refrigerant Recovery Machine
This full featured Fieldpiece Reclaim Unit has onboard system monitoring that adjusts motor performance to handle liquid and run twice as fast on vapor.  The MR45INT also steps up low voltage at the supply input to deliver full power to the motor where high voltage drop is a problem.
With a powerful 1HP motor and super-sized condenser, this refrigerant Recovery Unit excels on longer and hotter jobs.


The easy-to-read display, lightweight (10Kgs), straight hose connection ports, and single dial make this machine user-friendly while being tough enough for everyday use in Air Conditioning & Refrigeration applications.


                                                      View the Comparison Chart










Refrigerant Recycling has never been easier or faster with the MR45INT Recovery Pump.
Dual cylinder compressor with long life and low friction with ceramic lined cylinders
Auto Shut Off when -10 Kpa reached
Protected from voltage drop (runs as low as 190 VAC)
Single dial self purge
Twice the RPMs (3,000) and twice the horsepower (1HP - 0.745kW) with DC Motor
Extra large condenser cools faster, especially on hot days
Light Weight at only 10 Kgs
Water & Rain resistant

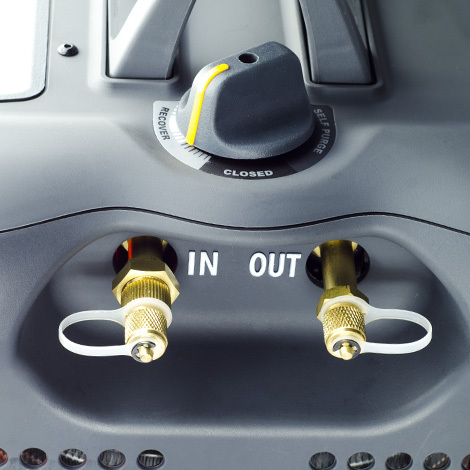

Easy access ports
Easy hose connections and built in power cord storage
Large backlit display with status messages
UL Verified to Section 608 of EPA Clean Air Act
UL Verified to AHRI Standard 740
Suitable for use with A2L Class Refrigerants [ R32, R1234YF ... ]
Also can be used for transferring SF6 [sulfur hexafluoride] a non-flamable gas used in electrical compomponents.

​1 - Year from Date of Purchase
​Excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Case etc

WHAT'S INCLUDED
MR45INT Refrigerant Recovery Machine
10 Extra Mesh Screens for Input Port
3 Extra O-ring for Input Port
Operator’s Manual

Specifications
Display:  2 x 10000 count LCD with status messages
Backlight:  Blue color
Measurement rate:  3.3 times per second, nominal
Input Port Pressure Sensor Range:  -30” Hg to 600 psig
Output Port Pressure Sensor Range:  -30” Hg to 600 psig
High Pressure Cutoff:  558 psig, nominal
Resolution and Units:  1 psig (1” Hg), 0.05 bar (2 cmHg),  0.01 Mpa (2 cmHg), 5 Kpa (2 cmHg)
Pressure Sensor Accuracy:  ± 0.5 “ Hg (Vacuum)  ± (0.6% of reading +2 psig)
Final Recovery Vacuum:  14.9” Hg
Compressor:  Twin cylinder reciprocating (oil-less)
DC Motor:  1 HP (variable smart speed)
Power Source:  220 - 240 VAC @ 50 Hz 1 phase
Max Current Draw: 7.0 Amp
Valve:  Single dual-route ball valve
Input Port Filtration:  9 mm mesh screen, stainless
Dimensions:  376 mm x 250 mm x 344 mm
Weight:  10 Kgs
Operating Environment:  32°F to 122°F (0°C to 50°C)
Storage Environment:  -4°F to 140°F (-20°C to 60°C)
Approved Refrigerants:  R12, R12345YF, R134A, R22, R32, R401A (MP39), R401B, R401C, R402A, R402B, R404A, R407A, R407B, R407C, R407D, R408A, R409A, R410A, R412A, R500, R502, R507, R509. ​
